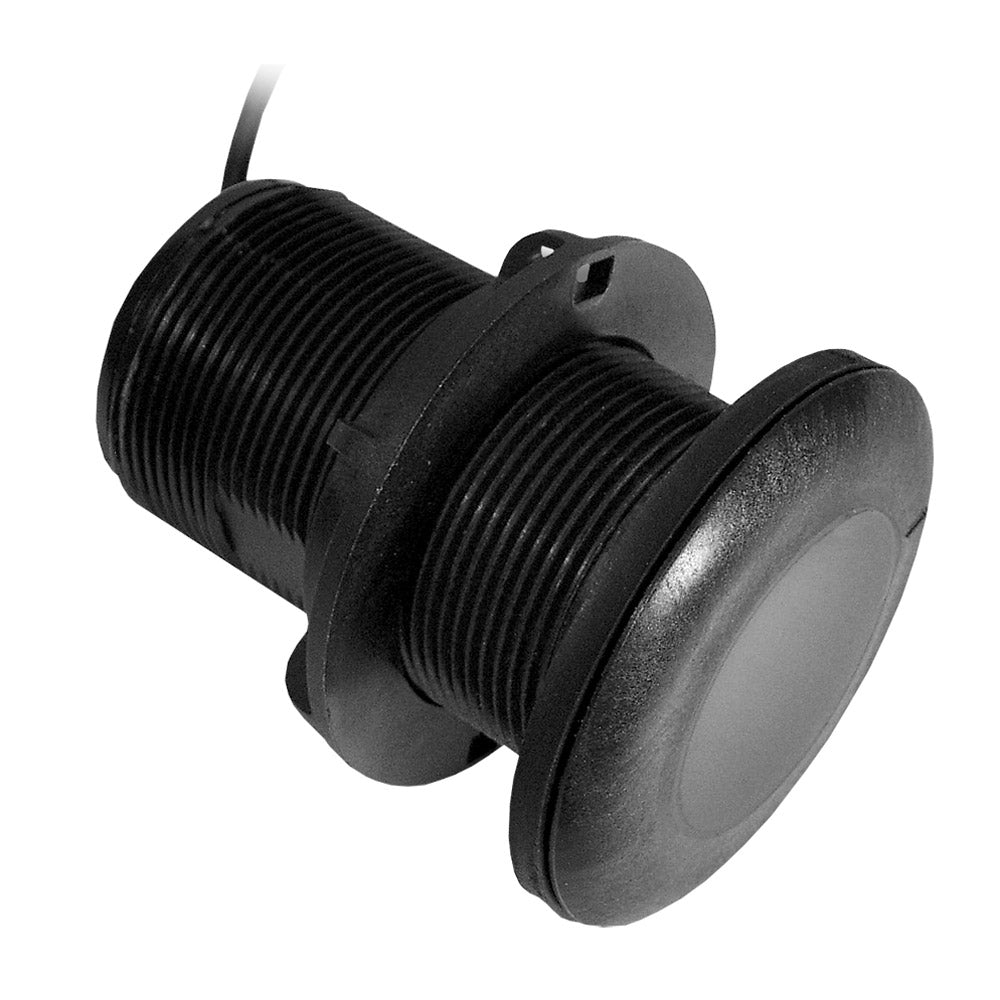

Garmin P19 Nylon 20° Tilt Transducer - 8-Pin (010-10218-22)
  • Garmin P19 Nylon 20° Tilt Transducer - 8-Pin (010-10218-22)
Garmin P19 Nylon 20° Tilt Transducer - 8-Pin (010-10218-22)

Garmin P19 Nylon 20° Tilt Transducer - 8-Pin (010-10218-22)

Manufacturer Part: 010-10218-22
UPC: 753759971755
8 left
$ 159.95 $ 199.99
Full Factory Garmin Warranty

Factory Authorized Retailer

25 Years of Excellence in Customer Service

Media & Manuals

Tilted Element™ Thru-Hull

Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications
  • Cruising powerboats and sailboats
  • Sailboats


Features
  • Depth only or Depth and temperature
  • Fixed 20° tilted versions for 16° to 24° hull deadrise
  • Right angle cable exit offers low headroom and protection when transducer is stepped on
  • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Housings are ABYC H-27 compliant
  • Optional temperature sensor
  • Plastic housing
  • Boat Size: Up to 9M (30')
