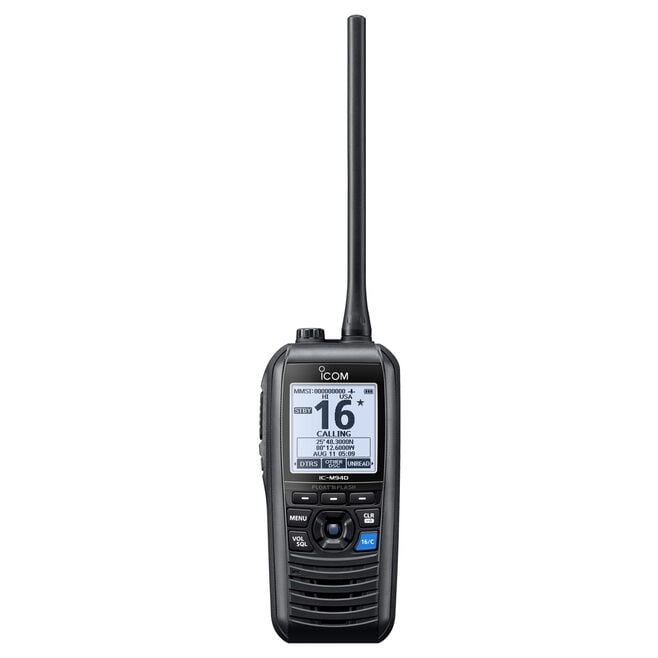

M94D VHF Marine Radio with AIS & DSC & GPS
Icom's M94D VHF Marine Transceiver is the world's first handheld to possess the power of AIS. With a class-leading 1500 mW speaker and ocean-conscious features, the M94D is perfect for small boats and leisure craft looking to stay safe and informed on the ocean.
Simplified AIS and DSC in One Package

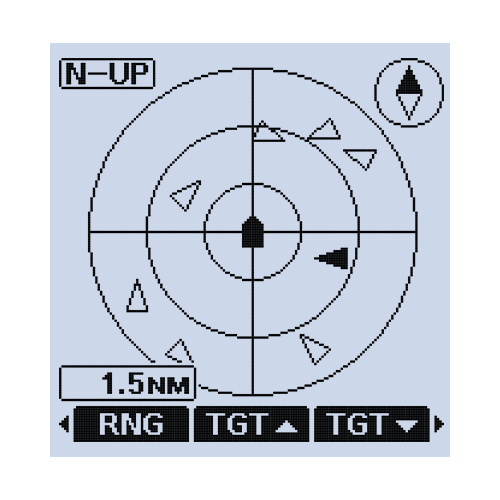

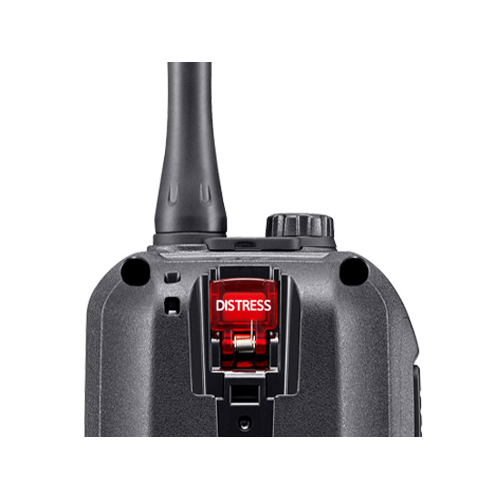

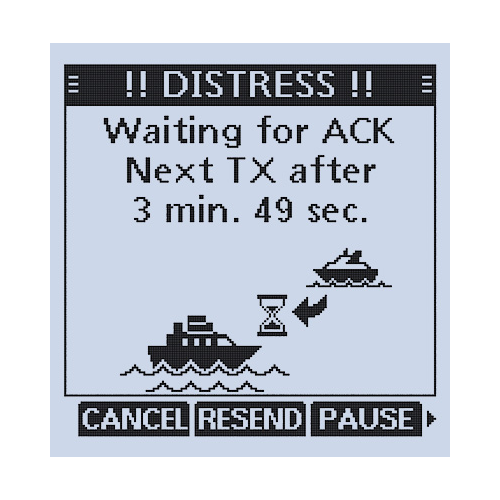

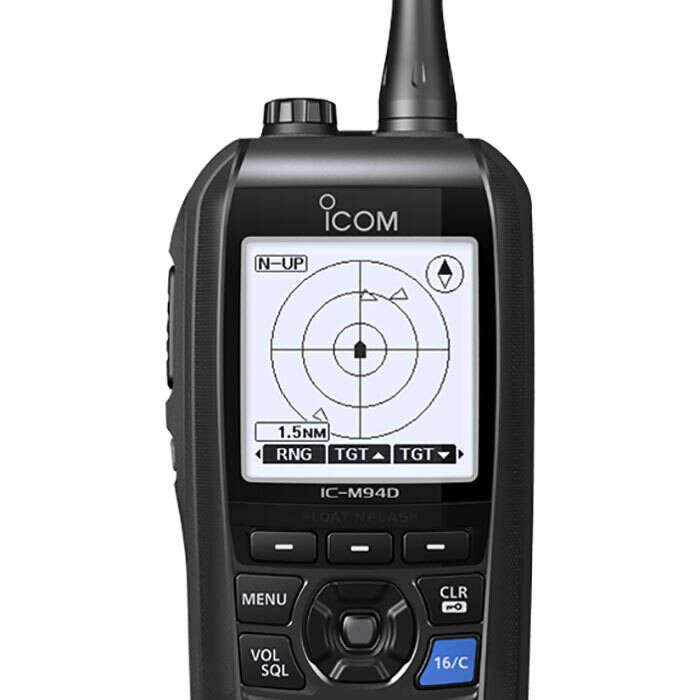

The simplified AIS and DSC functions add further assurance for safety at sea. With the integrated AIS receiver, real-time AIS vessel traffic information is shown on the display. The AIS target call function allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel button.
6W RF Output Power and 10 Hours of Operating Time
The IC-M94D’s 6 watts *1 of transmit power provides an extended communication range for the user. Supplied 2400 mAh (typical) high capacity Li-ion battery, BP-306 provides 10 hours of operating time, under normal conditions *2.
*1 5 W for AUS version/*2 Approximate, typical operation with 5:5:90 duty ratio.
Class-Leading 1500 mW Audio Output
Icom’s custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments.
Simplified Navigation Function

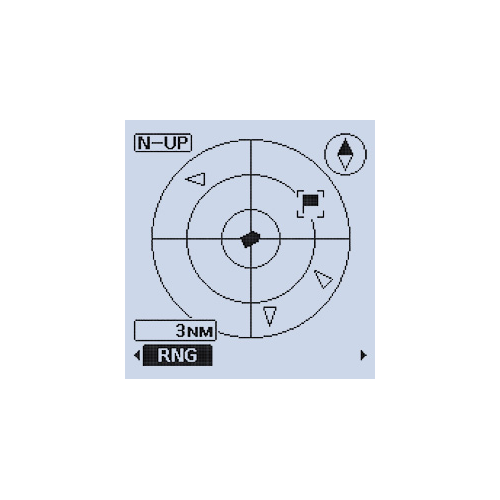

The Navigation function guides you to a specified waypoint. You can assign a maximum of 50 favorite fishing spots or destinations as waypoints.
Float’n Flash and MOB Auto Set Functions
The radio floats with a flashing LED light to help you retrieve it from the water. Pressing the distress button while Float’n Flash is working will transmit the MOB distress signal, rather than the plain undesignated one for better protection of sailors.
Features:
- Large, easy-to-read screen with dimmable functions - increases readability under any lighting condition
- Combines Automatic Identification System (AIS) and Distress Signal Calling (DSC)
- With the AIS target call function, users can set up DSC individual calls
- Access vessel traffic information and plot up to 50 waypoints for fishing spots or Man-Overboard (MOB) waypoints
- Floats and automatically flashes when dropped into water, even when it is off
- AquaQuake™ draining fuction removes water from the grill by vibrating at a particular frequency, preventing audio degradation
- Supplied 2400 mAh (typical) high capacity Li-ion battery, BP-306 provides 10 hours of operating time, under normal conditions
- Custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments
- Active noise cancelling technology
- Weather channel
- Dualwatch and Tri-watch functions
- Favorite channel function
- Supports 4-digit channels
- Class-H DSC VHF marine handheld transceiver with simplified AIS
- Built-in AIS and DSC combination adds further assurance for safety at sea
- 6 W output power for reliable long-distance communication
- Significantly increased audio output power to 1500 mW (crystal clear communications even in any maritime environment)
- Icom common UI offers intuitive operation
- Simplified navigation function to a specified waypoint or MOB waypoint
- 11 hours (approx.) of long battery life with the supplied 2400 mAh (typ.) high capacity Li-ion battery pack
- Float’ n Flash: The radio floats with a flashing red LED light for easier retrieval from the water
- IPX7 waterproof construction
- Integrated GPS
General Specifications
- Frequency range:
- Tx: 156.025157.425 MHz
- Rx: 156.050163.275 MHz
- DSC: 156.525 MHz
- AIS (Rx): 162.025 MHz
- Usable channel groups: INT, USA, CAN, WX channels
- Type of emission: 16K0G3E (FM), 16KOG2B (DSC), 16K0GXW (AIS)
- Current drain (at 7.4V DC):
- Tx (6W / 1W output): 1500 mA / 700 mA (approx.)
- Rx (Inter SP/Exter SP Max. audio): 700 mA / 350 mA (approx.)
- Operating temperature range: -20° C to +60° C (14° F to +140° F)
- Antenna Impedance: 50 Ohms
- Floating: Yes (with Float'n Flash for easy retrieval)
- Submersible: Yes (IPX7 rated)
- Dimensions (H x W x D): 5.7" H x 2.4" W x 1.7" D
- Weight: 12.6 oz.
Transmitter Specifications
- Output power: 6W / 1W
- Max. frequency deviation: +/- 5 kHz
- Frequency stability: +/- 10ppm
- Spurious emissions: -68 dBc typ.
Receiver Specifications
- Sensitivity (at 12 dB SINAD): 0.25 μV typical
- DSC receiver (at 1% BER): 0.56 μV emf typical
- AIS receiver (at 20% PER): -107 dBm
- Squelch sensitivity (Threshold): 0.25 μV typ.
- Adjacent Channel Selectivity: 70 dB typical
- DSC receiver (at 1% EBR): 73 dBμ emf typical
- Spurious response: 70 dB typical
- DSC receiver (at 1% EBR): 73 dBμ emf typical
- Intermodulation: 70 dB typical
- DSC receiver (at 1% EBR): 68 dBμ emf typical
- Hum and noise ratio: 40 dB typical
- Audio output power (at 10% distortion)
- Internal speaker: 1500 mW typical (8 Ohms load)
- External speaker: 350 mW typical (8 Ohms load)
