Lowrance HST-DFSBL Dual Frequency Transom-Mount Transducer with Temperature Sensor (000-0106-77)
1/2
  • Lowrance HST-DFSBL Dual Frequency Transom-Mount Transducer with Temperature Sensor (000-0106-77)
  • Lowrance HST-DFSBL Dual Frequency Transom-Mount Transducer with Temperature Sensor (000-0106-77)
Lowrance HST-DFSBL Dual Frequency Transom-Mount Transducer with Temperature Sensor (000-0106-77)

Lowrance HST-DFSBL Dual Frequency Transom-Mount Transducer with Temperature Sensor (000-0106-77)

Manufacturer Part: 000-0106-77
UPC: 042194524092
3 left
$ 114.95 $ 115.00
Full Factory Lowrance Warranty

Factory Authorized Retailer

25 Years of Excellence in Customer Service

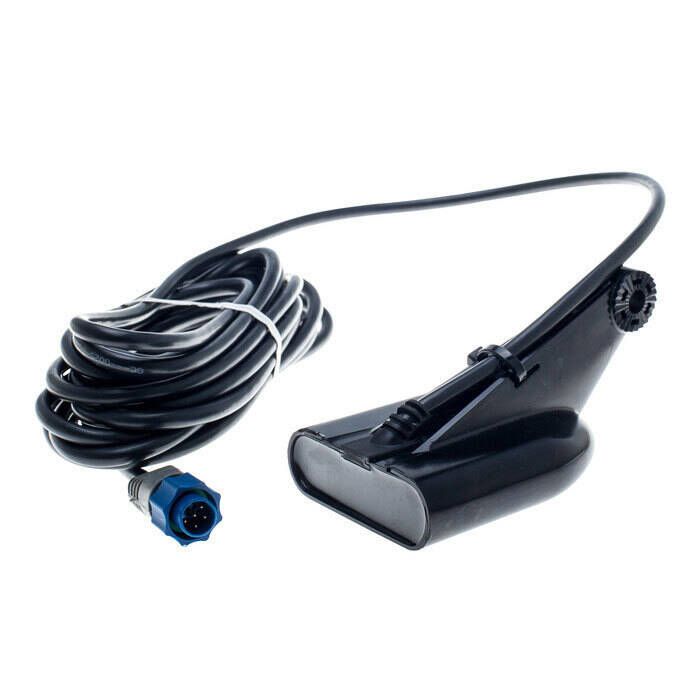

The Lowrance 000-0106-77 is the HST-DFSBL 50/200 kHz Skimmer Transducer, a high-performance, transom-mount transducer designed for deep-water sonar and precise temperature tracking. Its specialized "skimmer" design allows it to slice through water without creating sonar-interfering bubbles, ensuring clear sounder returns even at high boat speeds.

Key Features
  • Dual-Frequency Sonar: Operates at 50 kHz (35° beam width) for deep-water penetration and 200 kHz (12° beam width) for high-resolution detail in shallower depths.
  • Maximum Depth: Capable of tracking depths up to 3,000 feet (900 meters) at 50 kHz.
  • Integrated Temperature Sensor: Provides real-time water temperature readings directly to your display.
  • Rugged Construction: Features a plastic housing with a "kick-up" transom-mount bracket to prevent damage from accidental strikes.
  • Deep-Water Performance: Ideal for salt water, downrigger tracking, and offshore applications.

Compatibility
This transducer is designed for units that utilize the standard Navico blue 7-pin connector. It works with a wide range of current and legacy series, including:
  • HDS Series: HDS Gen1, Gen2, Gen2 Touch, Gen3, Carbon, and HDS LIVE.
  • Elite Series: Elite FS and Elite Ti/Ti² (may require a 7-to-9 pin adapter).
  • Legacy Models: LCX-110C, LCX-111C HD, LMS-337C DF, LMS-525C DF, X105C DF, and X59DF.
  • Other Brands: Compatible with select Simrad and B&G multifunction displays and echosounder modules.

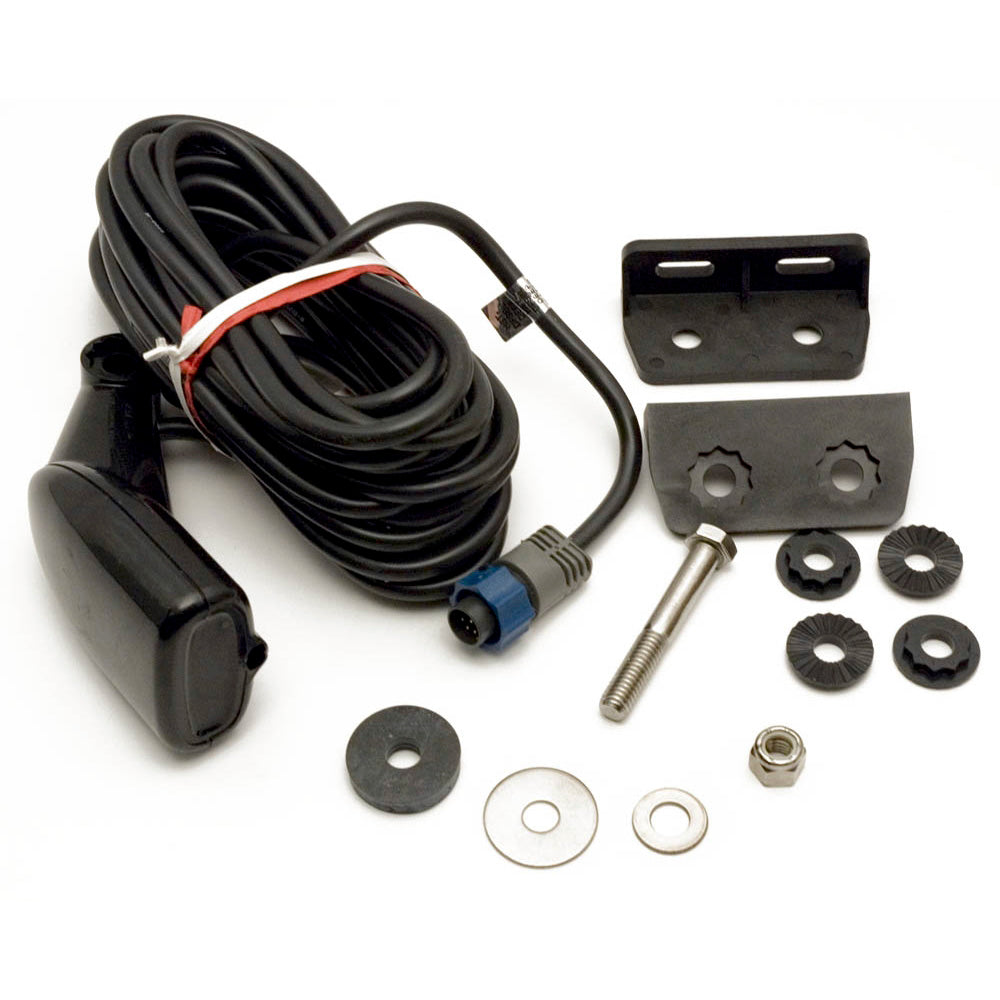

What's in the Box
  • HST-DFSBL Skimmer Transducer: Includes an integrated 20-foot (6-meter) cable with a blue 7-pin connector.
  • Transom Mounting Bracket: A high-quality "kick-up" bracket and all necessary installation hardware.
  • Installation Documentation: Instruction manual and mounting template.
