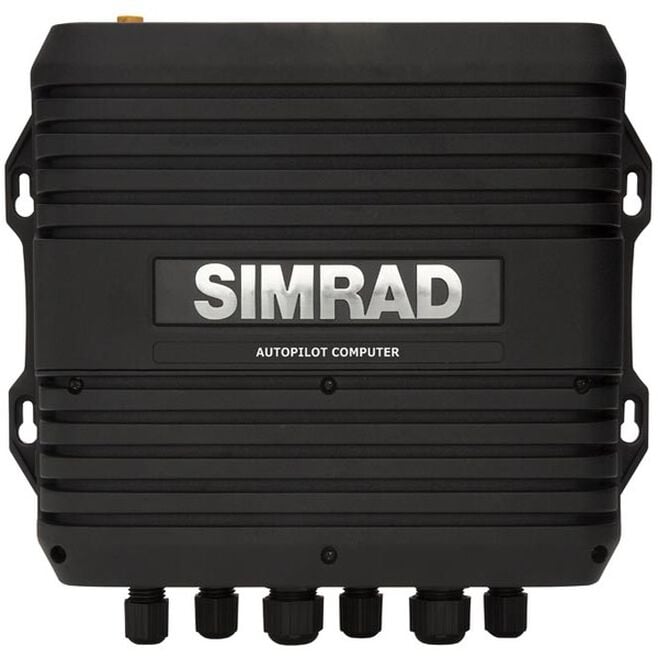

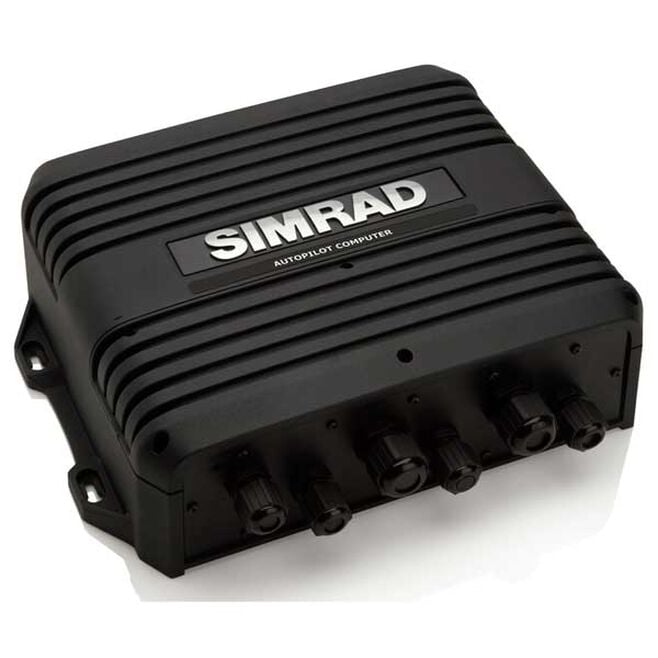

The Simrad AC80S is a robust, high-performance autopilot course computer designed for larger commercial and recreational vessels using solenoid steering systems or thrusters. This advanced "brain" module integrates seamlessly with professional-grade control heads like the Simrad AP70 and AP80 to provide precise and reliable navigation control.
The AC80S is engineered for complex installations, featuring a wide range of input/output options, including multiple NMEA 0183 channels and built-in CAN-bus supply for network integration. Its robust design ensures excellent performance in demanding marine conditions, providing peace of mind and enhanced safety at sea.
Key Features:
- Solenoid Drive Output: Provides powerful, galvanically isolated outputs for on/off control of rudders or thrusters using solenoids, with up to 10A current capacity.
- Extensive Feedback Support: Compatible with frequency, voltage, or current angle feedback for precise rudder position monitoring.
- Multiple Interfaces: Features a built-in CAN-bus supply and four independent IEC 61162-1 (NMEA 0183) input/output channels for broad system compatibility.
- Professional Grade: Designed as part of the Simrad Pro line, often used in IMO-approved systems when paired with the appropriate control head and sensors.
- Durable and Reliable: Built for the harsh marine environment with a wide operating temperature range of -15°C to +55°C (+5°F to +131°F).
Specifications:
- Part Number: 000-10188-001
- Input Voltage: 12-24V DC
- Connectivity: SimNet (CAN-bus), 4x NMEA 0183 I/O channels, Dedicated Rudder Feedback inputs
- Drive Type Supported: On/Off Solenoid or Proportional High-Level Current Drives
- Compatibility: Simrad AP70, AP80 control heads, and various Navico sensors.
